An under-$100 RGB + ToF + IMU concept is evaluated with a custom simulator, then an epc660-class engineering sample is brought up beside a Pi camera. A cable causes two hours of brown-outs. Calibration improves 12.7 to 4.56 pixels but misses the <4 px target; a 30-second map motivates a shared clock, IMU and factory calibration.

Watch Episode 14 on YouTube ↗

Can We Bring Up ToF LiDAR + Camera—and Calibrate Them? | Ep.14

I started with a product-shaped question: could we make a small RGB + depth + IMU sensor for the home lab, with an initial target below $100? The episode ends with real points from separate sensors, not the integrated box in the render.

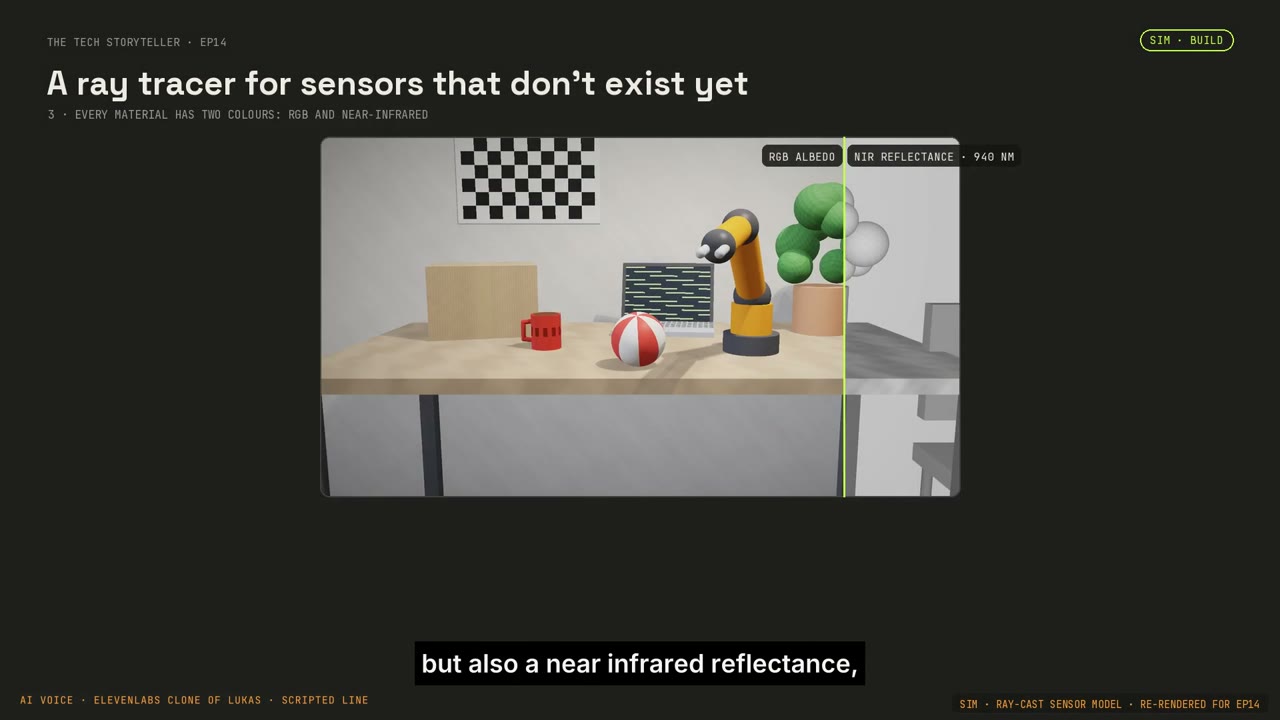

The ray-traced test scene supplies known geometry for comparing simulated depth sensors.
EP14 · 3:28 · SimulationThe ray-traced test scene supplies known geometry for comparing simulated depth sensors. Watch this moment ↗

First, compare the sensing routes.

We built our own ray-cast comparison of direct ToF, indirect ToF and stereo in scenes with hands and nearby objects. The denser iToF model had an advantage in hand coverage; sparse dToF offered a different per-point trade-off, and a plain white bench challenged stereo. These are simulation results under our assumptions, not a product benchmark.

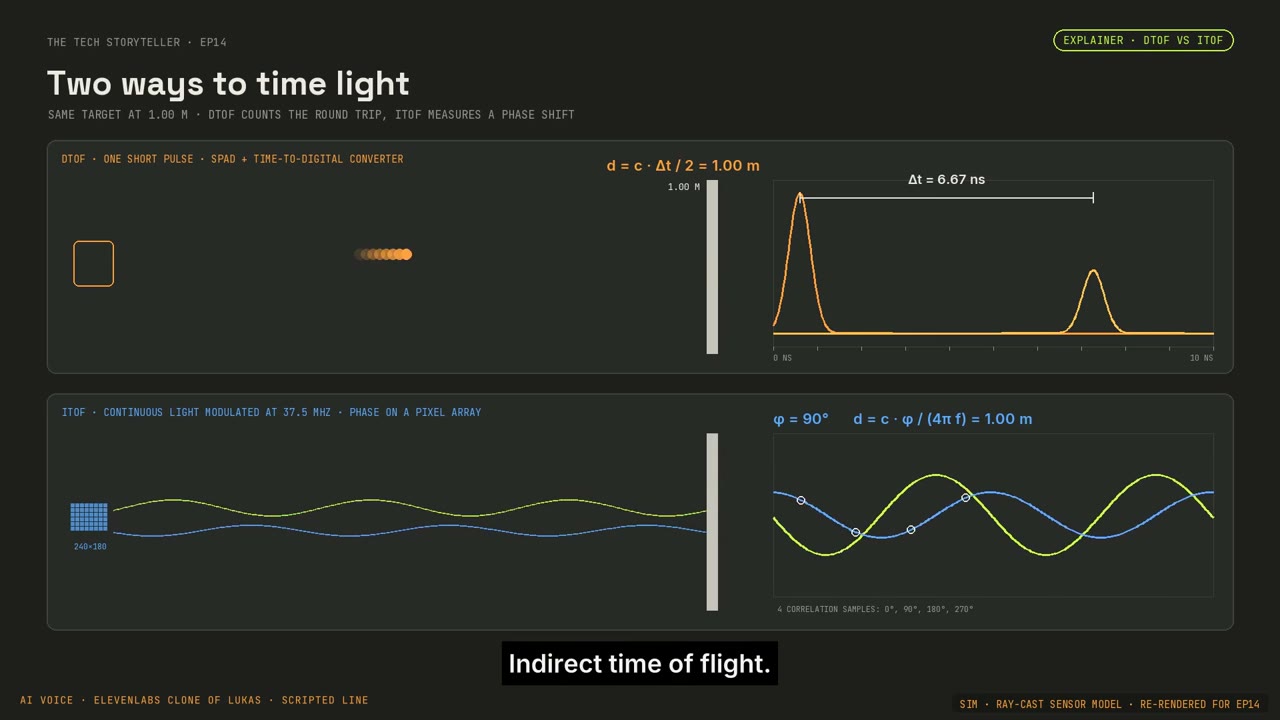

The episode contrasts pulse timing with phase-based indirect time of flight.
EP14 · 5:00 · Illustration / designThe episode contrasts pulse timing with phase-based indirect time of flight. Watch this moment ↗

Then, keep the hardware alive.

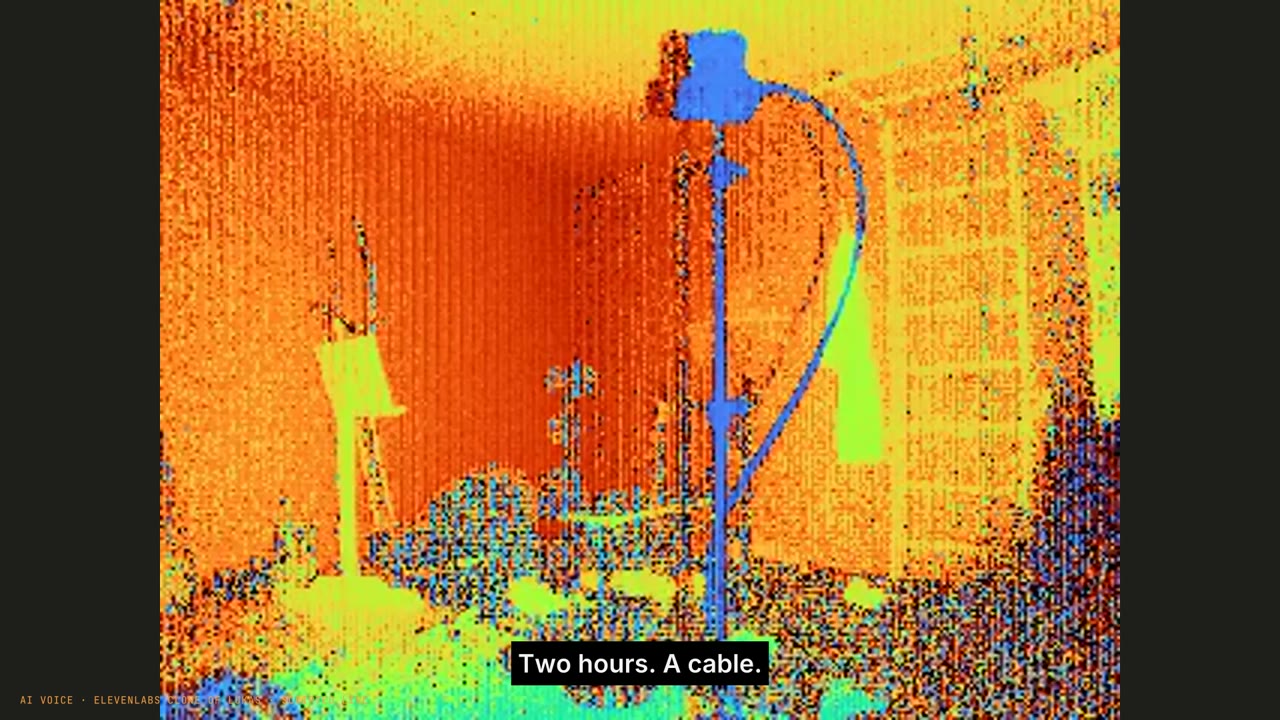

The available epc660-class engineering sample needed protocol work and an SDK build on Apple Silicon. Starting measurements repeatedly caused brown-outs. A cable swap resolved the immediate problem after roughly two hours. Only then could we spend our time arguing with the geometry.

Paired with a Pi camera, the sensor gave us a registration problem that automatic feature matching did not solve. The landmark loop improved the reported error from 12.7 to 4.56 pixels. Our later held-out review measured 4.56 px RMS and a 6.54 px maximum at 640 × 480. The acceptance thresholds were below 4 px RMS and below 6 px for every held-out landmark. The candidate failed and remained provisional.

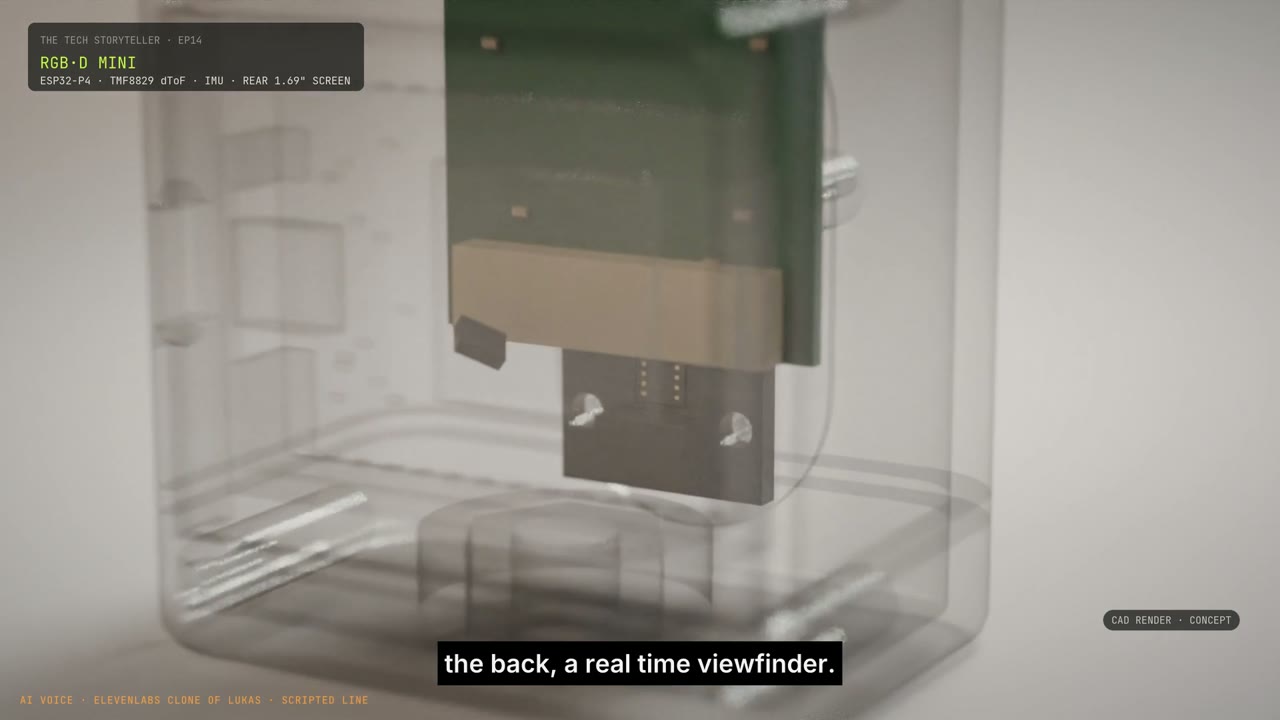

A translucent CAD view explores the layout of the proposed compact sensor.
EP14 · 2:42 · Illustration / designA translucent CAD view explores the layout of the proposed compact sensor. Watch this moment ↗

A useful failure becomes a specification.

A 30-second recording and voxel map made the next design requirements concrete: a stable sensor mounting, a shared clock, an IMU and calibration that belongs to the device. The film documents an actual bring-up and an unfinished calibration. It does not establish hardware synchronisation, a validated product price or a finished one-box sensor.

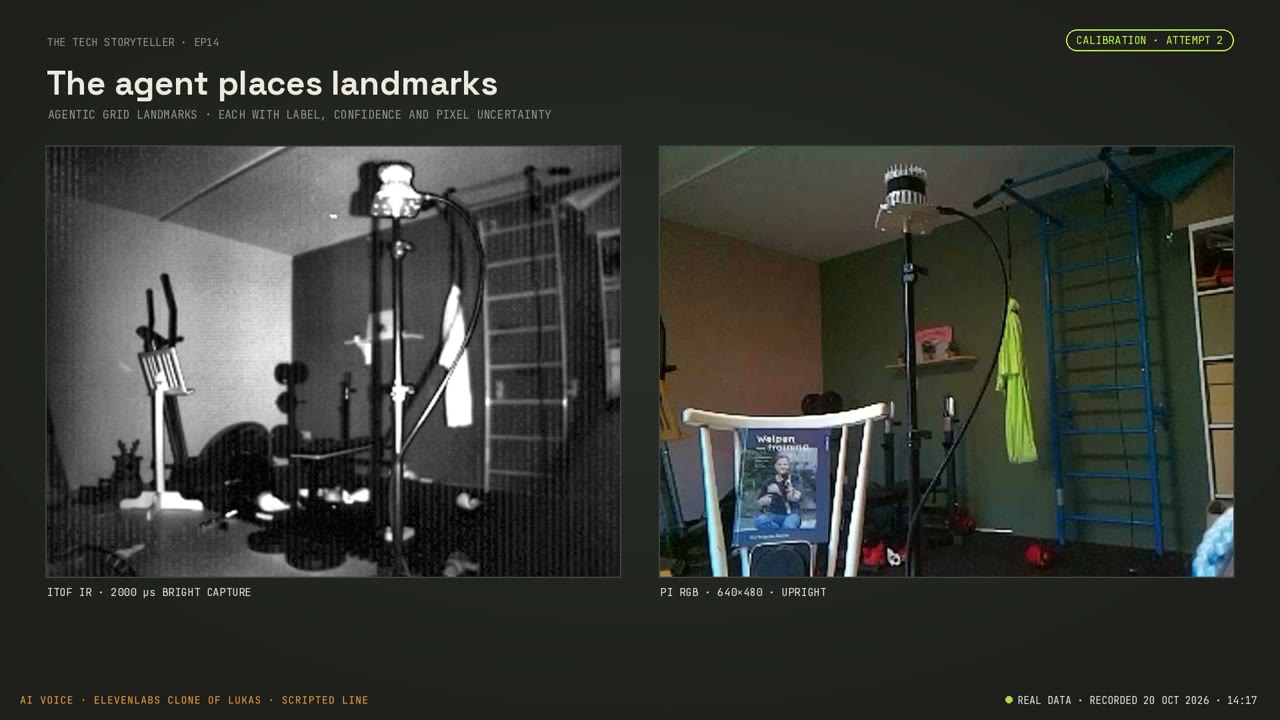

Landmarks are placed between the infrared and RGB views for provisional alignment.
EP14 · 11:10 · Recorded evidenceLandmarks are placed between the infrared and RGB views for provisional alignment. Watch this moment ↗

The longer cross-episode sensor story connects this attempt to the Ouster experiments, the next day’s bent-wall investigation and the Mini-X architecture.

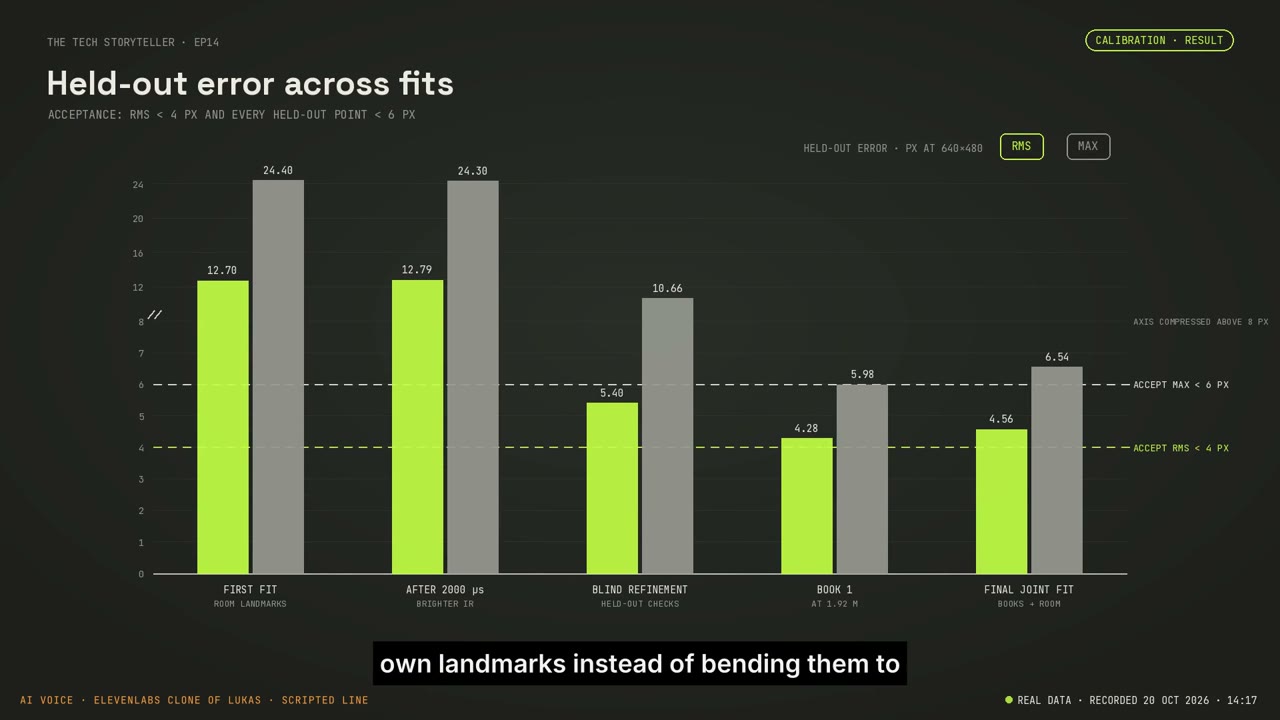

Held-out errors compare candidate fits and show why calibration still needs validation.
EP14 · 12:42 · Recorded evidenceHeld-out errors compare candidate fits and show why calibration still needs validation. Watch this moment ↗

Scope of this episode: Separate demonstrated sensors; one-box is a concept; under $100 is a target; provisional calibration.
